Network License Setup

PTV America March 26, 2020 PTV Support

Network licenses administered on a CodeMeter (CM) Stick allow multiple users in a company network to use the same license for PTV Vissim / PTV Visum / PTV Vistro. Network licenses can be setup as a single seat (which only allow a single user to access the software at one time) or with multiple seats (which allows multiple users to use the license simultaneously) and can be setup on a dedicated license server or workstation running the CodeMeter software. This guide outlines the process for setting up the network licenses on both the host and client machines.

Host (Server) Configuration

Please see the steps below to setup the network license on the host machine. Note: The server needs to have a static IP address, otherwise client machines will need to update the IP address each time it changes.

1. Download and install the latest CodeMeter Runtime version (located near the bottom of the webpage under “PTV Vision-Traffic-License-Server”):
https://cgi.ptvgroup.com/visionSetups/en/

2. Open the Codemeter Control Center application.

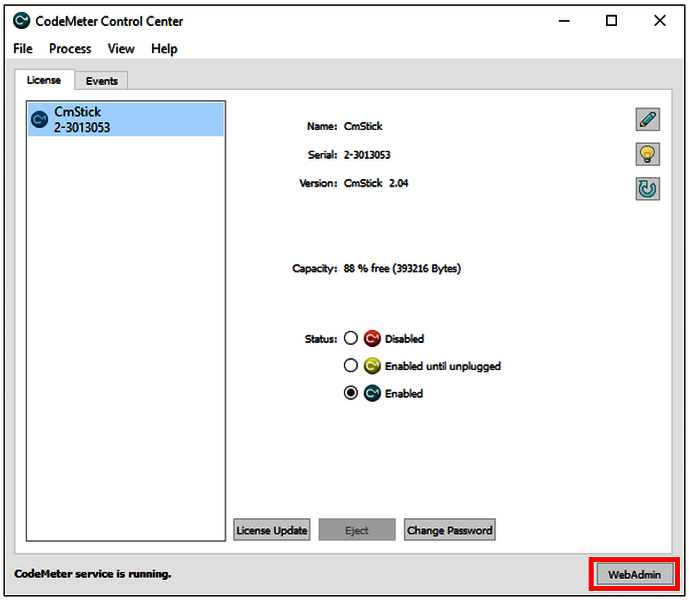

3. Press the WebAdmin button.

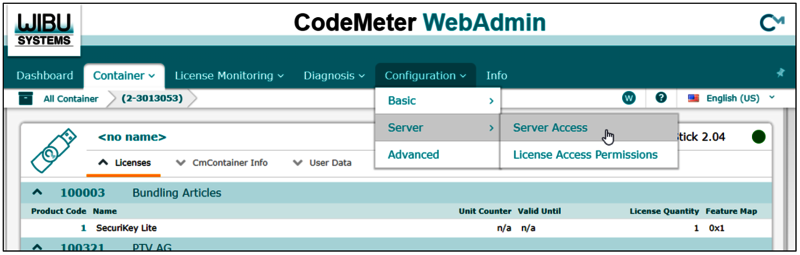

4. Navigate to the Configuration tab and select Server -> Server Access.

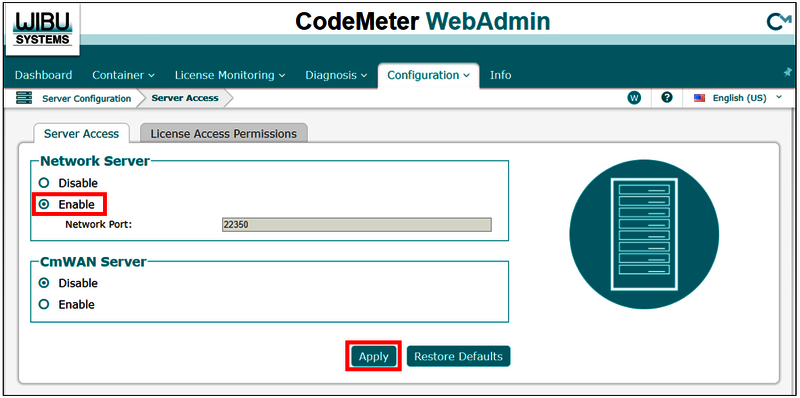

5. Under the Network Server option, select Enable and click Apply.

Client Configuration

Please see the steps below to setup the client machine and connect to the network license.

1. If not already installed, download and install the PTV software and latest CodeMeter Runtime version:
https://cgi.ptvgroup.com/visionSetups/en/

2. Open the Codemeter Control Center application.

3. Press the WebAdmin button.

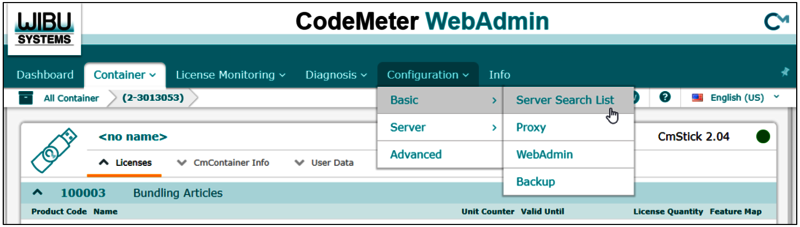

4. Navigate to the Configuration tab and select Basic -> Server Search List.

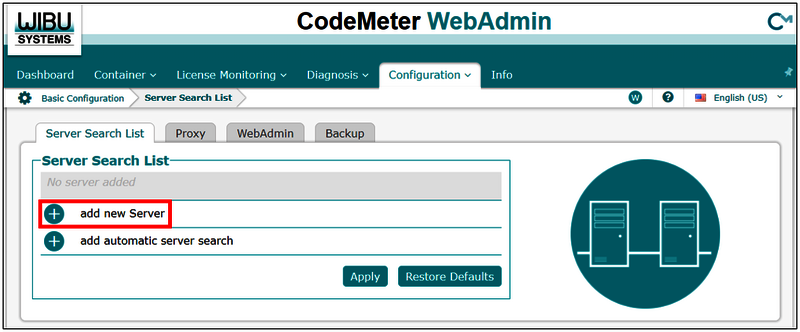

5. Select add new Server.

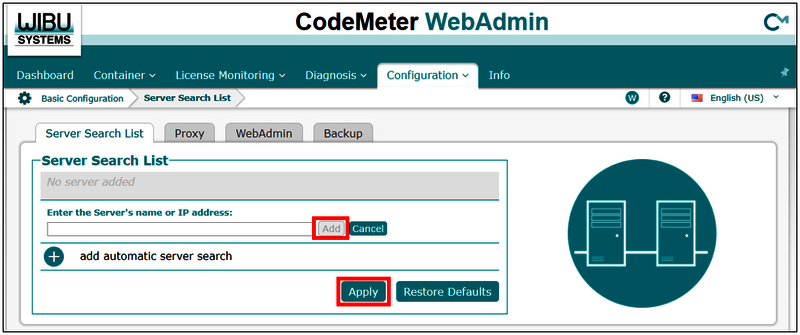

6. Enter the IP address of the server hosting the network license and select Add. Then select Apply.

7. Launch the desired PTV Software application. This will automatically open up an application called License Manager.

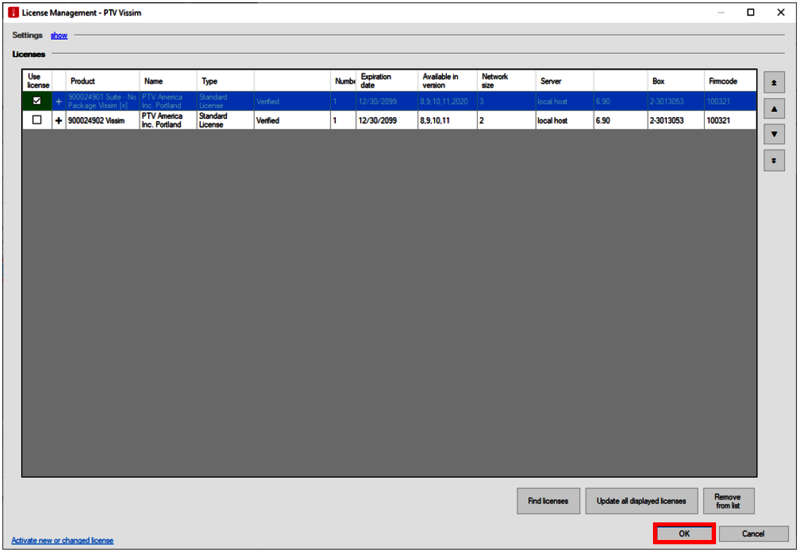

8. Select Find licenses and check the Use license box next to the network license. Select OK.

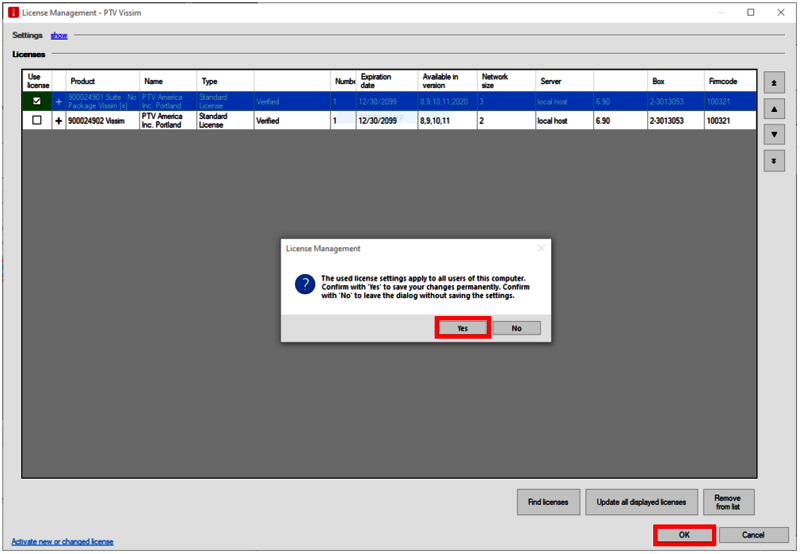

9. A prompt will open about saving the licensing settings. Select Yes.

10. This will finish launching the PTV software application.
